PANEL SYSTEM ACCESSORIES


Structural Accessories for our Panel Systems

In addition to our complete line of panel systems and structural members, Flexospan offers a full complement of accessories. Call for details on CUSTOM accessories.

Eave Struts - Angles - Rake Channels - Z-Bars - Subgirts - Sag Rods

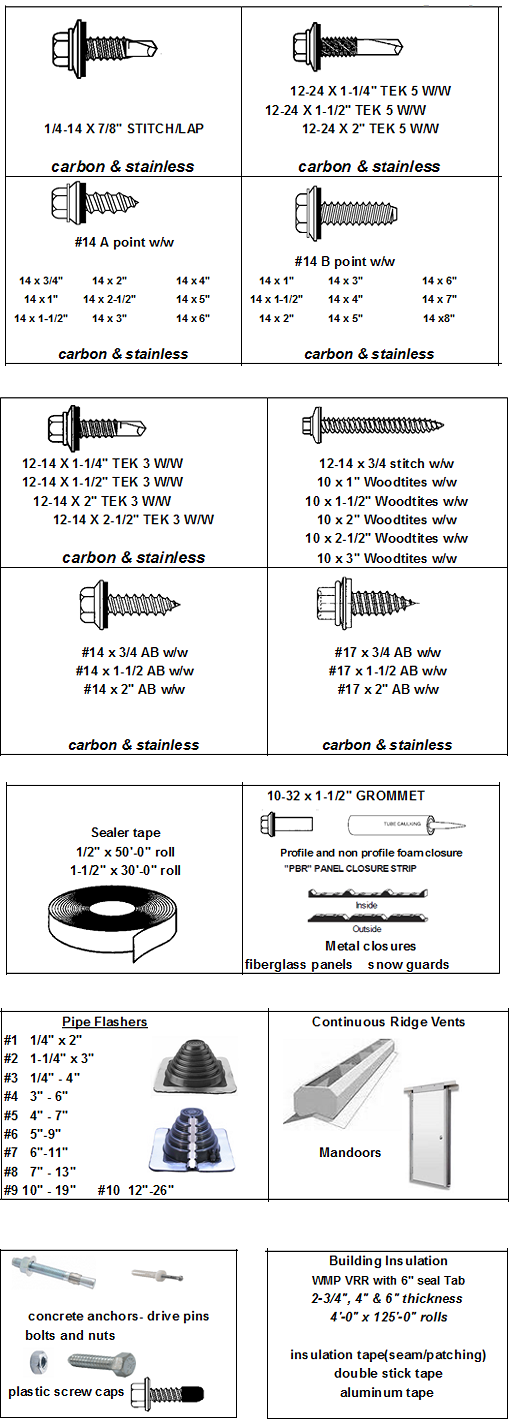

Fasteners, Tape, Grommets, & More


Eave Struts
Eave Strut
Top Flange Pitched Size Gauge

4 x 2 1/2"

18 Ga
16 Ga
6 x 2 1/2"

16 Ga

12 Ga
8 x 2 1/2" 16 Ga
14 Ga
12 Ga
10 x 2 1/2" 16 Ga
14 Ga
12 Ga
Both Flanges Pitched Size Gauge

12 x 2 1/2" 16 Ga
14 Ga
12 Ga
Angles
Base Angle Size Gauge

2" x 3" 16 Ga
14 Ga
3" x 3" 16 Ga
14 Ga
3" x 4" 16 Ga
14 Ga
Corner Angle Size Gauge

10" x 4" 16 Ga

Rake Channel

Size Gauge

6" x 2" 16 Ga
8" x 2"
10" x 2"
12" x 2"
Sub-girt Size Gauge

1/2" 18 Ga
16 Ga
Size Gauge

3/4" 18 Ga
16 Ga
Size Gauge

1 1/2" 18 Ga
16 Ga
Z-bar Size Gauge

Z-bars are available in a variety of depths and gauges. Contact Flexospan for more information.
Sag Rod Size Description

1/2" Provided with 4 nuts and 4 washers, 6" thread, both ends
5/8"
3/4"

More Accessories
